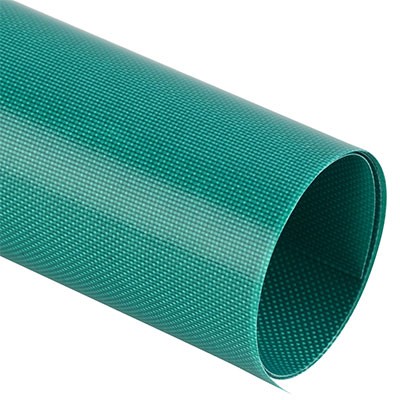

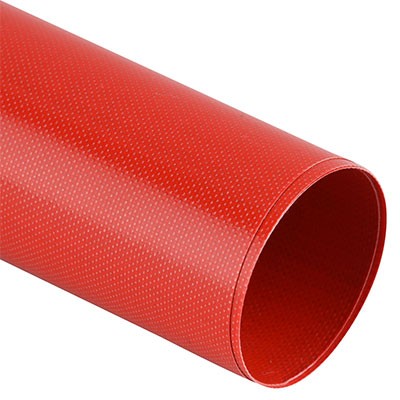

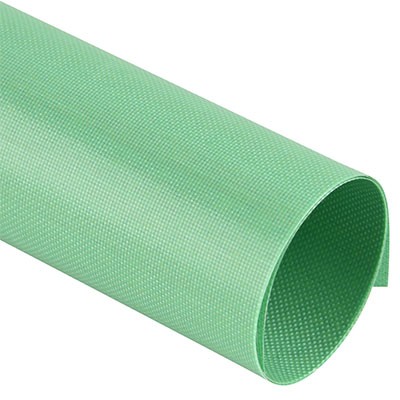

PTFE coated fiberglass colorful fabric

, also known as Teflon high temperature fabric, high temperature welding cloth, PTFE high temperature cloth,etc., is made of high-quality imported glass fiber fabric as the base material. Through unique processing technology, it is repeatedly fully impregnated and coated with high-quality PTFE (Teflon) resin to produce Teflon high temperature coated fabric of various thicknesses.

The Main Features of Heat Resistant Tensile PTFE coated fiberglass colorful fabric of various thicknesses:

1. Used for low temperature -196 degrees and high temperature 300 degrees, it has weather resistance and anti-aging;

2. Non-adhesive: not easy to adhere to most substances, easy to clean;

3. Chemical corrosion resistance, strong acid, strong alkali, aqua regia and various organic solvents;

4. Low friction coefficient (0.05-1), a good choice for oil-free self-lubrication;

5. It has high insulation performance (small dielectric constant: 2.6, tangent below 0.0025), UV protection, anti-static

6. Good dimensional stability (elongation coefficient less than 0.5%) and high strength. It has good mechanical properties.

Application Range of Heat Resistant Tensile PTFE coated fiberglass colorful fabric of various thicknesses :

1. Anti-stick lining, gasket, cover cloth and conveyor belt; according to different thickness, it can be used for conveyor belts, adhesive belts, sealing belts, etc. of various drying machines;

2. Welding cloth for plastic products welding and welding; plastic sheets, films, heat-sealed sheet lining tapes;

3. Electrical high insulation: electrical insulation tape base, spacers, gaskets, lining rings;

4. Microwave gaskets, oven sheets, food drying.

5. Solar laminator high temperature cloth (generally with a thickness of 0.25mm, 0.30mm, 0.35mm and a width of 2.2m)

The Common Specifications of Heat Resistant Tensile PTFE coated fiberglass colorful fabric of various thicknesses:

(Customized 0.05mm-1.5mm arbitrary thickness)

Main Specifications of Heat Resistant Tensile PTFE coated fiberglass colorful fabric of various thicknesses:
