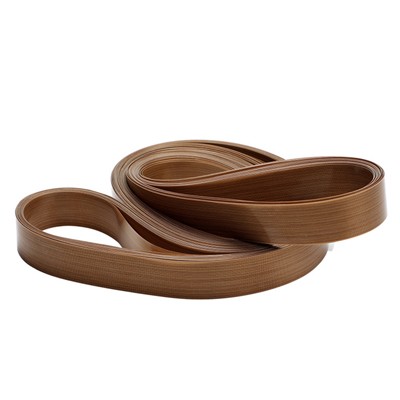

PTFE Seamless Heat Sealer Belts

Brand: WELLFLON
Materials: PTFE (Teflon), Fiberglass Fabric
Yarn Type: Filament Yarn/Texturized Yarn
Width Range: 1000~4000mm
Features: Non-stick, High-Temp Resistant
Temp. Resistance: -70°C to +280°C
Color: Brow/Black/White /Custom Color
Certification: FDA/LFGB/SGS/RoHS/UL

EMAIL

Teflon high temperature cloth, also known as Teflon high temperature cloth, high temperature welding cloth, PTFE high temperature cloth, etc., is made of high-quality imported glass fiber cloth as the base material. Through unique processing technology, it is repeatedly fully impregnated and coated with high-quality Teflon resin to produce Teflon high temperature coated cloth of various thicknesses.



The Main Features of PTFE (Teflon) glass fiber high temperature coated cloth:

1. Used for low temperature -196 degrees and high temperature 300 degrees, it has weather resistance and anti-aging;

2. Non-adhesive: not easy to adhere to most substances, easy to clean;

3. Chemical corrosion resistance, strong acid, strong alkali, aqua regia and various organic solvents;

4. Low friction coefficient (0.05-1), a good choice for oil-free self-lubrication;

5. It has high insulation performance (small dielectric constant: 2.6, tangent below 0.0025), UV protection, anti-static

6. Good dimensional stability (elongation coefficient less than 0.5%) and high strength. It has good mechanical properties.



Application Range of PTFE (Teflon) glass fiber high temperature coating cloth:

1. Anti-stick lining, gasket, cover cloth and conveyor belt; according to different thickness, it can be used for conveyor belts, adhesive belts, sealing belts, etc. of various drying machines;

2. Welding cloth for plastic products welding and welding; plastic sheets, films, heat-sealed sheet lining tapes;

3. Electrical high insulation: electrical insulation tape base, spacers, gaskets, lining rings;

4. Microwave gaskets, oven sheets, food drying.

5. Solar laminator high temperature cloth (generally with a thickness of 0.25mm, 0.30mm, 0.35mm and a width of 2.2m)



The common specifications of PTFE (Teflon) glass fiber high temperature coating cloth are as follows:

(Customized 0.05mm-1.5mm arbitrary thickness)

Item No.

Color

Thickness (mm)

Weight of Fiberglass(g/m2)±3%

Total Weight (g/m2) ±5%

Tear Strength (N/5cm) ±5%

Temperature Resistance

Warp

Weft

CWF-0070
black/white/brown
0.065
48
70
500
460
-70 ~+280℃
CWF-0150
black/white/brown
0.07
48150650550-70 ~+280℃
CWF-0165
black/white/brown
0.0848165700600-70 ~+280℃
CWF-0130
black/white/brown
0.095
105130820800-70 ~+280℃
CWF-0220
black/white/brown
0.105
105220900750-70 ~+280℃
CWF-0230
black/white/brown
0.115
10523011501000-70 ~+280℃
CWF-0250
black/white/brown
0.125
10525012001100-70 ~+280℃
CWF-0300
black/white/brown
0.14
10530013501250-70 ~+280℃
CWF-0350
black/white/brown
0.17
16535017501550-70 ~+280℃
CWF-0360
black/white/brown
0.18
16536018001650-70 ~+280℃
CWF-0275black/white/brown
0.2
20527520001800-70 ~+280℃
CWF-0440
black/white/brown
0.22
20544024001650-70 ~+280℃
CWF-0490
black/white/brown
0.23
20549022001750-70 ~+280℃
CWF-0500
black/white/brown
0.24
20550022001850-70 ~+280℃
CWF-0500
black/white/brown
0.25
20550025002000-70 ~+280℃
CWF-0620
black/white/brown
0.28
29362025001800-70 ~+280℃
CWF-0385
black/white/brown
0.31
28338519001400-70 ~+280℃
CWF-0620
black/white/brown
0.32
25562030002100-70 ~+280℃
CWF-0690
black/white/brown
0.35
33369032002200-70 ~+280℃
CWF-0770
black/white/brown
0.39
33377032002100-70 ~+280℃
CWF-0540
black/white/brown
0.43
40554035002400-70 ~+280℃
CWF-1000
black/white/brown
0.53
538100042003500-70 ~+280℃
CWF-1180
black/white/brown
0.63578118045003800-70 ~+280℃
CWF-1550
black/white/brown
0.78768155055004000-70 ~+280℃
CWF-1600
black/white/brown
0.9865160065005500-70 ~+280℃
CWF-1250
black/white/brown
0.98852125060005000-70 ~+280℃
